320 – Mineral isolated sheath material

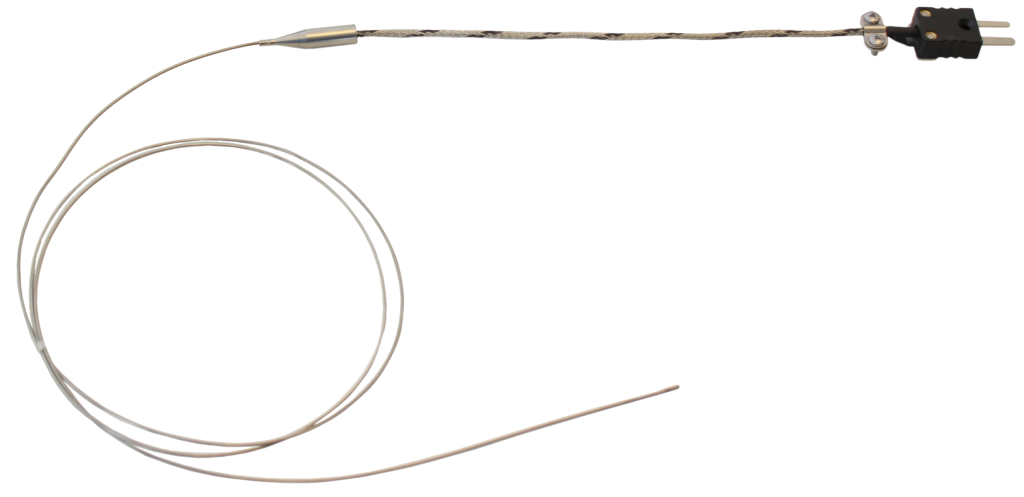

Flexible sensor consisting of sheath material 320/340.

This flexible sensor is made of sheath material 320/340.

The material:
Flexible RVS (or Inconel) in different diameters and unlimited lengths. The sensors can also be transported/delivered rolled up. The cores are mineral isolated and resisted to high temperatures. Very fast temperature registrations are possible.

Deliverable diameters: 0,5mm – 1mm – 1,5mm – 2mm – 3mm – 6mm.

All sheath material temperature sensors are assembled and tested per piece in our own factory. There is no limit on versions and we handle a very fast delivery time!

specification
Dimension Drawing

Types

320: Mineral isolated sheath material.

Dimensions

As requested with order. Deliverable diameters: 0,5mm - 1mm - 1,5mm - 2mm - 3mm - 6mm.

Possible applications

General industry.
Ovens.
Machine construction.
Food industry
Shipping
Heavy industry
Offshore
laboratories

Measuring elements

PT100
Thermocouple J
Thermocouple K

Measuring systems

Duplex version
Single

Temperature range

Standard range tot a maximum of 300°C. Also suitable for higher temperatures.

Process connection

For mounting options we refer you to our page with sensor accessories (compression fittings etc.)

Options

Connection connector according to specification, M8, M12 or customer-specific
Thermocouple connector Male or Female, small or large model
